As electric vehicles (EVs) become increasingly popular, understanding the various charging options available is crucial for both new and seasoned EV owners. One of the most common points of confusion revolves around the differences between 1-phase and 3-phase EV charging. These two types of power supply systems play a significant role in determining how quickly and efficiently your EV charges. But what exactly are the differences, and which one is right for you?
In this article, we ‘ll explore the key differences between 1-phase and 3-phase EV charging. By the end of this post, you ‘ll have a clear understanding of which type of charging best suits your needs, whether you’re charging at home or at a public station.
Understanding 1-Phase and 3-Phase Power
Before diving into the differences, it ‘s essential to understand what 1-phase and 3-phase power systems actually are. These terms refer to the way electrical power is delivered to your home or business.
What is 1-Phase Power?

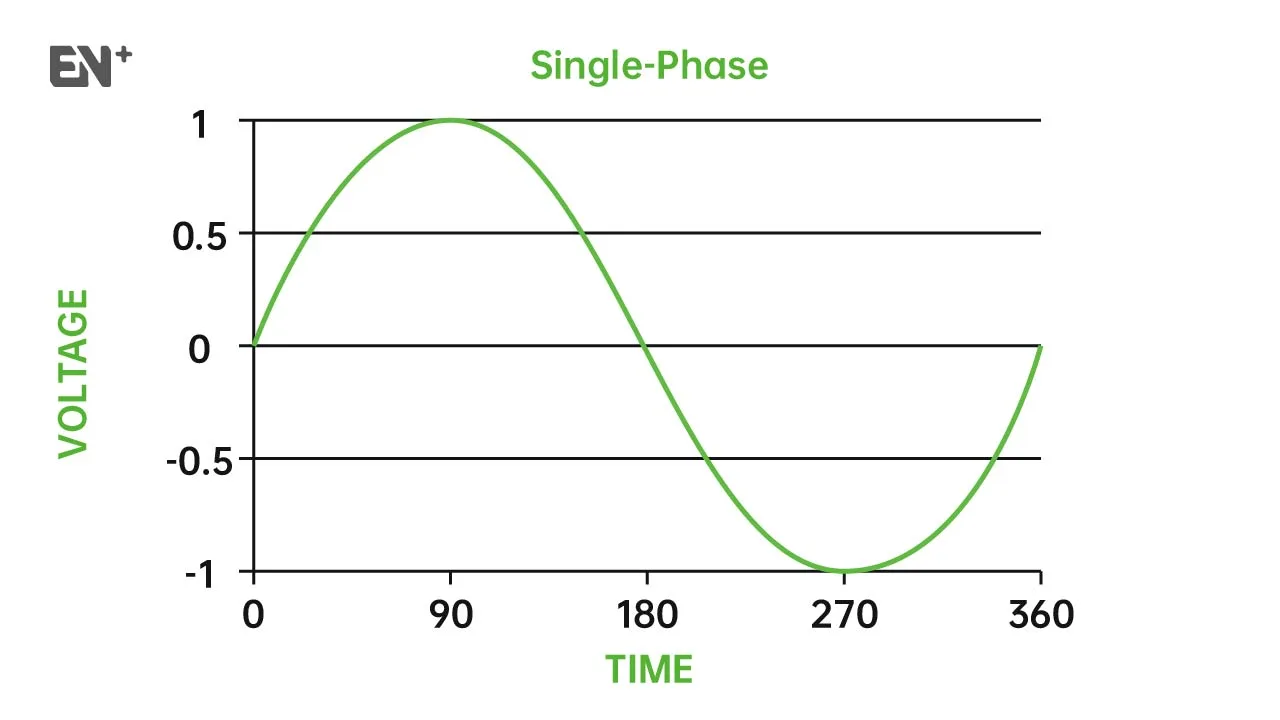

- phase power, also known as single-phase power, is the most common type of electrical supply found in residential homes. It uses a single alternating current (AC) waveform, which delivers electricity through two wires: onelive wire and one neutral wire. The current flows in a cyclical manner, creating peaks and troughs in the voltage level. Because there is only one waveform, the power supply can sometimes be less stable, with potential fluctuations.
For EV charging, 1-phase power is often sufficient for daily needs, especially for overnight charging at home. However, the charging speed is slower compared to 3-phase power, which we’ll discuss shortly.
What is 3-Phase Power?

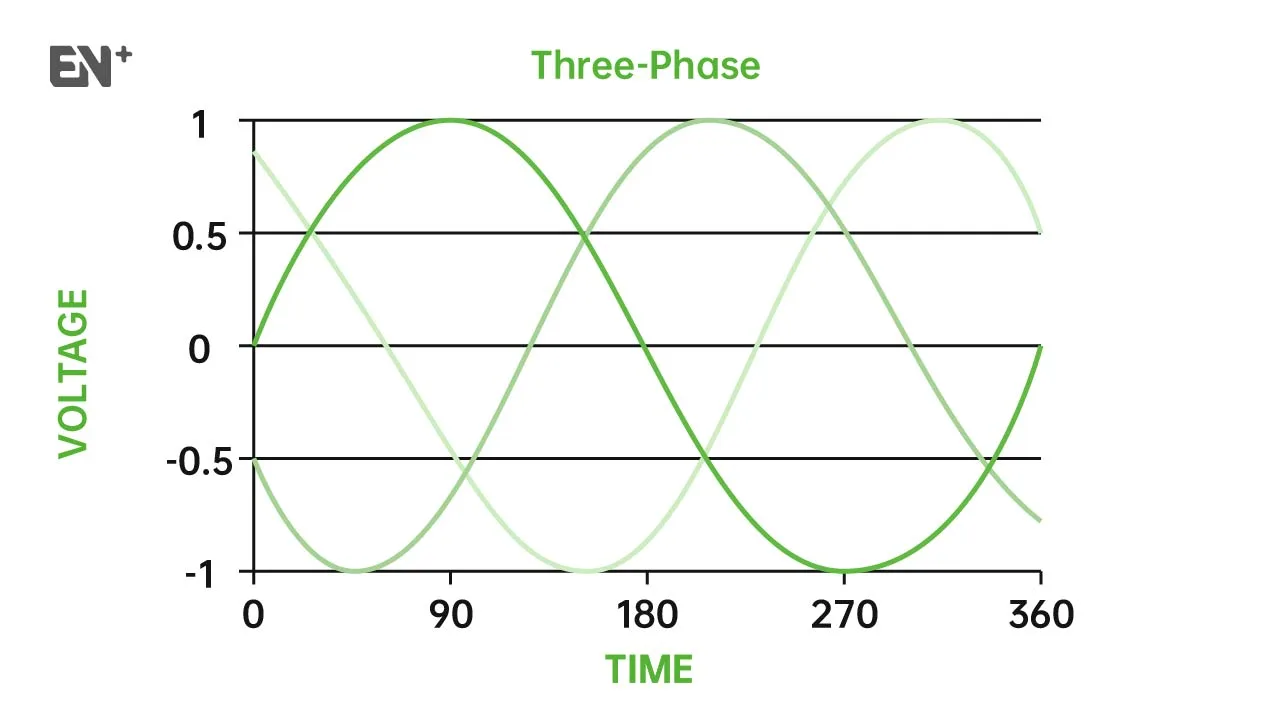

- phase power is typically found in commercial and industrial settings but is also available for residential use in some areas. Unlike 1-phase power, 3-phase power uses three alternating currents, each out of phase with the others by 120 degrees. This creates a more consistent and reliable power supply, as there is always voltage at peak in at least one of the phases, resulting in smoother and more efficient power delivery.
When it comes to EV charging, 3-phase power allows for faster charging speeds, making it ideal for public charging stations and homes equipped with 3-phase connections.
Key Differences Between 1-Phase and 3-Phase EV Charging
Now that we ‘ve covered the basics of 1-phase and 3-phase power, let ‘s break down the main differences between the two when it comes to EV charging.
Charging Speed
Charging speed is a crucial difference between 1-phase and 3-phase EV charging. A 1-phase charger typically delivers up to 7.4 kW, meaning it can take around 7 hours to fully charge a standard 50 kWh battery—adequate for overnight charging. In contrast, 3-phase charging can deliver up to 22 kW, allowing the same battery to charge in just over 2 hours, making it ideal for those needing quicker top-ups or public charging stations.
Installation and Availability
1-phase chargers are generally easier and less costly to install since most residential homes already have 1-phase power. In contrast, 3-phase chargers require more complex and expensive installations, especially if your home needs electrical upgrades. However, 3-phase is more common in commercial settings and is worth considering if your home or area is already equipped with 3-phase power.
Costs
The cost of setting up a 1-phase charger is lower due to the existing infrastructure in most homes, with minimal installation expenses. On the other hand, 3-phase chargers come with higher installation costs due to necessary electrical upgrades. However, the faster charging times with 3-phase may justify these costs if quick recharging is frequently needed.
Efficiency and Power Delivery
1-phase charging is generally less efficient, with more potential for voltage fluctuations, which can affect charging stability. 3-phase charging offers smoother and more consistent power delivery, improving efficiency and potentially extending your vehicle ‘s battery life by providing a more stable charging process.
Flexibility and Future-Proofing
While 1-phase charging is currently sufficient for most EVs, it may become limiting as battery sizes increase and faster charging technologies emerge. In contrast, 3-phase charging is more future-proof, accommodating the needs of newer EVs with larger batteries and faster charging capabilities. It also offers greater flexibility for integrating other high-demand systems like solar panels or energy storage.
Global Differences in Power Systems and Charging Standards
Another important consideration when choosing between 1-phase and 3-phase chargers is the global variation in power systems and EV charging standards. Depending on where you live, your options might be influenced by regional electrical infrastructure and regulations.
Power System Variations Across Countries
Different countries have different electrical infrastructure, which impacts whether 1-phase or 3-phase power is more commonly available for residential and commercial use.
- North America: In North America, most residential homes are equipped with 1-phase power, typically offering 120/240V. While 3-phase power is commonly used in industrial and commercial settings, it ‘s less frequently found in homes. As a result, most home EV chargers in the U.S. and Canada are designed for 1-phase power, and upgrading to 3-phase power can be challenging and costly.
- Europe: In Europe, 3-phase power is much more common in residential settings. Many homes are already equipped with 3-phase power, allowing for faster and more efficient EV charging. European countries typically use 230V for 1-phase power and 400V for 3-phase power, making 3-phase EV chargers more accessible and practical for home use.
- Asia: In countries like China and Japan, the power systems can vary significantly by region. In Japan, for example, both 1-phase and 3-phase power are used, but 1-phase is more common in residential areas. China, on the other hand, has a more extensive 3-phase network, especially in urban areas, which supports the growing demand for faster EV charging.
- Australia: In Australia, most residential homes use 1-phase power, similar to North America. However, 3-phase power is available and increasingly common in new constructions, especially for homeowners who want to install fast EV chargers.
Differences in Charging Standards
In addition to power systems, it ‘s also important to consider the varying EV charging standards around the world. These standards dictate the type of plug and power levels that are compatible with your EV, influencing your choice between 1-phase and 3-phase chargers.
Europe (Type 2 Connector)
In Europe, the Type 2 connector (also known as Mennekes) is the standard for both 1-phase and 3-phase AC charging. This connector is designed to handle both power types efficiently, making it versatile and widely adopted across the continent. The prevalence of 3-phase power means that European EVs often come equipped with onboard chargers that can take full advantage of 3-phase charging.
North America (Type 1 and CCS)
In North America, the Type 1 connector (also known as J1772) is standard for AC charging, but it ‘s generally limited to 1-phase power. For DC fast charging, the CCS (Combined Charging System) is commonly used, which supports high-power charging but is separate from the 1-phase/3-phase distinction. The reliance on 1-phase power in residential areas means that most North American EVs are optimized for this type of charging.
China (GB/T)
China uses the GB/T standard for EV charging, which includes connectors for both AC and DC charging. The AC version of GB/T typically supports both 1-phase and 3-phase charging, reflecting the country ‘s mixed use of both power systems.
Japan (CHAdeMO)
Japan primarily uses the CHAdeMO standard for DC fast charging, while Type 1 connectors are used for AC charging, similar to North America. The use of 1-phase power is more common in Japanese homes, influencing the design and availability of EV chargers.
Which One Should You Choose?
Now that we’ve covered the technical aspects, you might still be wondering which type of charger is right for you. The answer depends on your specific needs and circumstances.
For Charging Overnight at Home (1-Phase)
If you typically charge your EV overnight and don ‘t need rapid charging, a 1-phase charger, such as EN Plus Caro series and Alvis series, is likely sufficient. It ‘s cost-effective, easier to install, and compatible with most residential power systems. Plus, if your driving routine doesn ‘t require you to recharge quickly, the slower charging speed shouldn ‘t be an issue.
For Fast Charging at Home (3-Phase)
If you ‘re looking for faster charging at home—perhaps because you have a larger battery EV or frequently need to recharge quickly—a 3-phase charger is the better option. Despite the higher upfront costs, the increased charging speed and efficiency could be worth the investment, especially if your home already has 3-phase power. Here we recommend EN Plus Caro Pro series and Saro series.
For Public Charging (3-Phase)
For public charging, 3-phase chargers are generally the norm, offering the fast charging speeds needed to quickly top up your vehicle while on the go. If you ‘re frequently on the road and rely on public chargers, understanding the availability of 3-phase charging stations in your area is important. For public 3-phase chargers, EN Plus DC fast chargers are a reliable choice.
Wrapping Up
Choosing between 1-phase and 3-phase EV chargers comes down to your specific needs, budget, and future plans. If you ‘re looking for a simple, cost-effective solution and don ‘t need rapid charging, 1-phase chargers are likely your best bet. However, if you prioritize charging speed, efficiency, and future-proofing, a 3-phase charger is a wise investment.
As EV technology continues to evolve, understanding the differences between these two types of chargers will help you make an informed decision, ensuring that your charging setup meets your needs both now and in the future.
